Aluminum extrusion process information

Extrusion is defined as the process of shaping material, such as aluminum, by forcing it to flow through a shaped opening in a die.

Extruded material emerges as an elongated piece with the same profile as the die opening.

Press size determines how large of an extrusion can be produced.

Extrusion size is measured by its longest cross-sectional dimension, i.e. its fit within a circumscribing circle.

A circumscribed circle is the smallest circle that will completely enclose the cross-section of an extruded shape.

The most important factor to remember in the extrusion process is temperature.

Temperature is most critical because it gives aluminum desired characteristics such as hardness and finishes.

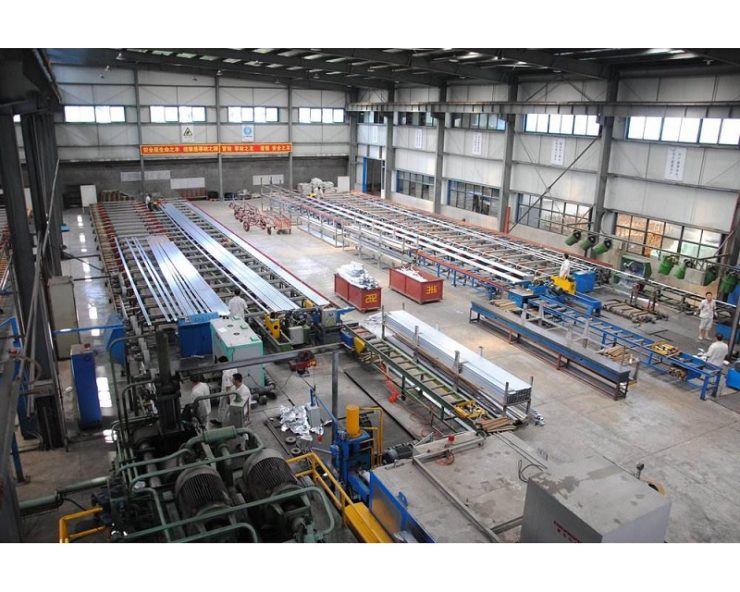

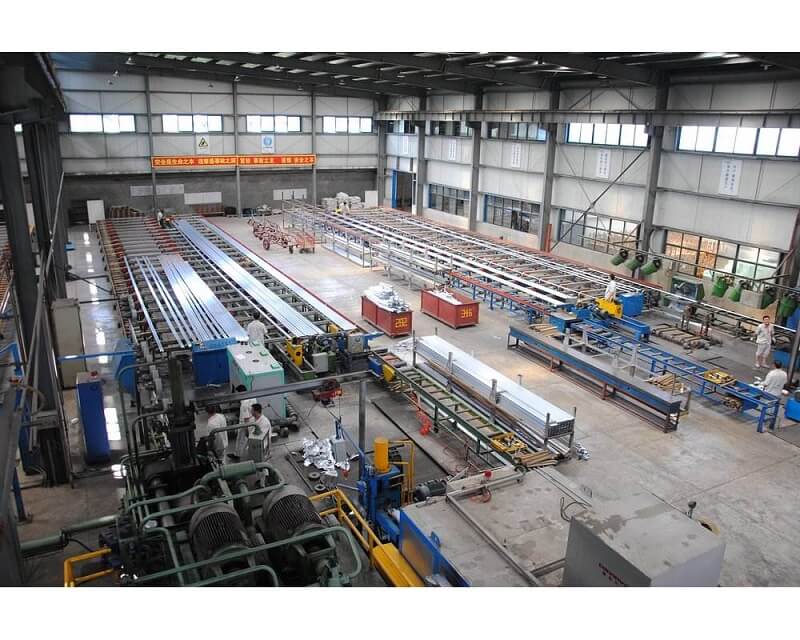

The steps in the extrusion process are as follows:

1. Billets must be heated to approximately 800-925 ° F.

2. After a billet reaches the desired temperature, it is transferred to the loader where a thin film of smut or lubricant is added to the billet and to the ram. The smut acts as a parting agent (lubricant) which keeps the two parts from sticking together.

3. The billet is transferred to the cradle.

4. The ram applies pressure to the dummy block which, in turn, pushes the billet until it is inside the container.

5. Under pressure the billet is crushed against the die, becoming shorter and wider until it has full contact with the container walls. While the aluminum is pushed through the die, liquid nitrogen flows around some sections of the die to cool it. This increases the life of the die and creates an inert atmosphere that keeps oxides from forming on the shape being extruded. In some cases, nitrogen gas is used in place of liquid nitrogen. Nitrogen gas does not cool the die but does create an inert atmosphere.

6. As a result of the pressure added to the billet, the soft but solid metal begins to squeeze through the die opening.

7. As an extrusion exits the press, the temperature is taken with a True Temperature Technology (3T) instrument mounted on the press platen. The 3T records the exit temperature of the aluminum extrusion. The main purpose of knowing the temperature is to maintain maximum press speeds. The target exit temperature for extrusion is dependent upon the alloy. For example, the target exit temperature for the alloys 6063, 6463, 6063A, and 6101 is 930° F (minimum). The target exit temperature for the alloys 6005A, and 6061 is 950° F (minimum).

8. Extrusions are pushed out of the die to the runout table and the puller, which guides metal down the run-out table during extrusion. While being pulled, the extrusion is cooled by a series of fans along the entire length of the run-out and cooling table. (Note: Alloy 6061 is water quenched as well as air quenched

9. Not all of the billet can be used. The remainder (butt) contains oxides from the billet skin. The butt is sheared off and discarded while another billet is loaded and welded to a previously loaded billet and the extrusion process continues.

10. When the extrusion reaches the desired length, the extrusion is cut with a profile saw or a shear.

11. Metal is transferred (via a belt or walking beams systems) from the run-out table to the cooling table.

12. After the aluminum has cooled and moved along the cooling table, it is then moved to the stretcher. Stretching straightens the extrusions and performs ‘work hardening’ (molecular re-alignment which gives aluminum increased hardness and improved strength).

13. The next step is sawing. After extrusions have been stretched they are transferred to a saw table and cut to specific lengths. The cutting tolerance on saws is 1/8 inch or greater, depending on saw length.

14. After the parts have been cut, they are loaded on a transportation device and moved into age ovens. Heat-treating or artificial aging hardens the metal by speeding the aging process in a controlled temperature environment for a set amount of time.

Direct and Indirect Extrusion

There are two types of extrusion processes, direct and indirect.

Direct extrusion is a process in which the die head is held stationary and a moving ram forces the metal through it.

Indirect extrusion is a process in which the billet remains stationary while the die assembly located on the end of the ram, moves against the billet creating pressure needed for metal to flow through the die.

Temper

Temper is the combination of aluminum hardness and strength produced by mechanical and/or thermal treatments.

The measures used to test the mechanical properties of aluminum are tensile, yield, and elongation.

Tensile is an indication of the maximum pulling load that a material can stand without failure, usually measured in pounds per square inch of cross-sectional area.

Yield is the stress at which a material first exhibits a specific permanent set.

Elongation is the maximum percentage of stretch material will stand before breaking.

A defined range of alloy and temper properties must be met in order to satisfy certificate of compliance requirements.

Rockwell Hardness is an indentation hardness test based on the penetration depth of a specified penetrator into a specimen under certain fixed conditions.

Webster is a relative indicator of hardness but does not guarantee a certificate of compliance requirements.

Factors Affecting Extrusion

The shape is a determining factor in the part’s cost and ease with which it can be extruded. In extrusion a wide variety of shapes can be extruded, but there are limiting factors to be considered.

These include size, shape, alloy, extrusion ratio, tongue ratio, tolerance, finish, factor, and scrap ratio.

If a part is beyond the limits of these factors, it cannot be extruded successfully.

The size, shape, alloy, extrusion ratio, tongue ratio, tolerance, finish, and scrap ratio are interrelated in the extrusion process as are extrusion speed, the temperature of the billet, extrusion pressure and the alloy being extruded.

In general, extrusion speed varies directly with metal temperature and pressure developed within the container.

Temperature and pressure are limited by the alloy used and the shape being extruded.

For example, lower extrusion temperatures will usually produce shapes with better quality surfaces and more accurate dimensions.

Lower temperatures require higher pressures. Sometimes, because of pressure limitations, a point is reached where it is impossible to extrude a shape through a given press.

The preferred billet temperature is that which provides acceptable surface and tolerance conditions and, at the same time, allows the shortest possible cycle time.

The ideal is billet extrusion at the lowest temperature which the process will permit.

An exception to this is the so-called press-quench alloys, most of which are in the 6000 series.

With these alloys, solution heat-treat temperatures within a range of 930°-980° F must be attained at the die exit to develop optimum mechanical properties.

At excessively high billet temperatures and extrusion speeds, the metal flow becomes more fluid.

The metal, seeking the path of least resistance, tends to fill the larger voids in the die face, and resists entry into constricted areas.

Under those conditions, shape dimensions tend to fall below allowable tolerances, particularly those of thin projections or ribs.

Another result of excessive extrusion temperatures and speeds is the tearing of metal at thin edges or sharp corners.

This results from the metal’s decrease in tensile strength at excessively high-generated temperatures.

At such speeds and temperatures, contact between the metal and the die-bearing surfaces is likely to be incomplete and uneven, and any tendency toward waves and twists in the shape is intensified.

As a rule, an alloy’s higher mechanical properties mean a lower extrusion rate.

Greater friction between the billet and the liner wall results in a longer time required to start the billet extruding.

The extrusion ratio of a shape is a clear indication of the amount of mechanical working that will occur as the shape is extruded.

Extrusion Ratio = area of billet/area of shape.

When the extrusion ratio of a section is low, portions of the shape involving the largest mass of metal will have little mechanical work performed on it.

This is particularly true on approximately the first ten feet of extruded metal.

Its metallurgical structure will approach the as-cast (coarse grain) condition.

This structure is mechanically weak and shapes with an extrusion ratio of less than 10:1 may not be guaranteed as to mechanical properties.

As might be expected, the situation is opposite when the extrusion ratio is high.

Greater pressure is required to force metal through the smaller openings in the die and extreme mechanical working will occur.

Normally acceptable extrusion ratios for hard alloys are limited to 35:1 and for soft alloys, it is 100:1.

The normal extrusion ratio range for hard alloys is from 10:1 to 35:1, and for soft alloys is 10:1 to 100:1.

These limits should not be considered absolute since the actual shape of the extrusion can affect results.

The higher the extrusion ratio, the harder the part is to extrude which is the result of the increased resistance to metal flow.

Hard alloys require maximum pressure for extrusion and are even more difficult because of their poor surface characteristics which demand the lowest possible billet temperature.

The difficulty factor is also used to determine a part’s extrusion performance.

The factor is the perimeter of the shape divided by the weight per foot. Factor = Perimeter of Shape/ Weight per Foot.

Weight per foot is of primary importance because of the consideration for profitable press operation.

As might seem obvious, a lighter section normally requires a smaller press to extrude it.

However, other factors may demand a press of greater capacity such as a large, thin-wall hollow shape.

Though it has a low weight per foot it may take more press tonnage to extrude it.

The same reasoning applies to the factor as with the extrusion ratio.

A higher factor makes the part more difficult to extrude consequently affecting press production.

The tongue ratio also plays an important role in determining a part’s extrusion performance.

The tongue ratio of extrusion is determined as follows: square the smallest opening to the void, calculate the total area of the shape, and then divide the opening squared by the area.

The higher the ratio, the more difficult the part will be to extrude.
