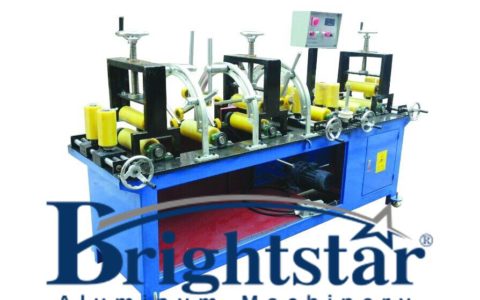

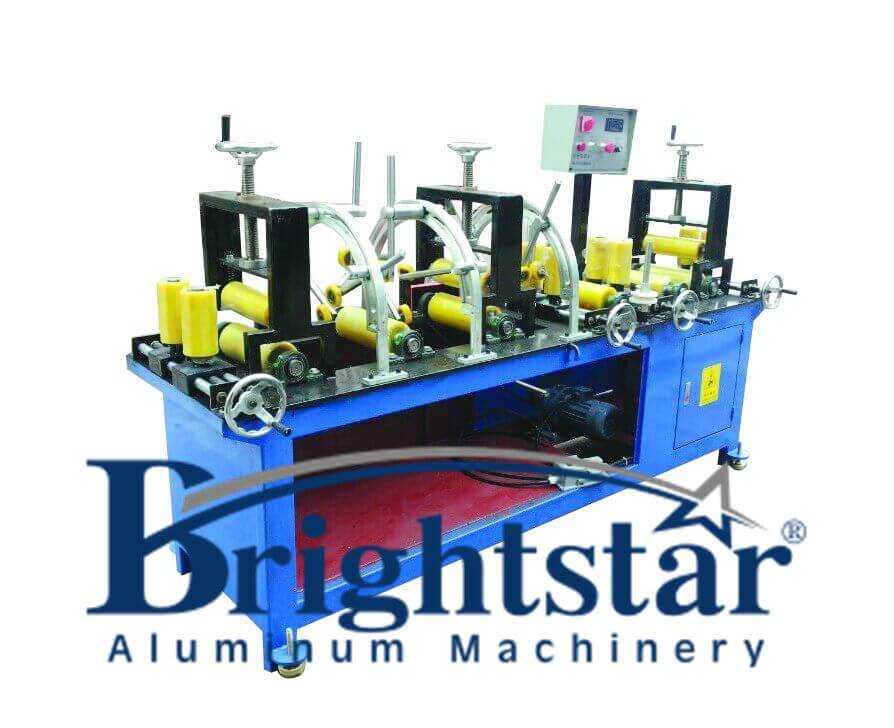

Aluminum profile film sticking machine
Aluminum profile film sticking machine
Aluminum profile film sticking machine
Aluminum Profile Film Sticking Machine: Adding an Extra Layer of Protection and Appeal
Aluminum profile film sticking machine, also known as aluminum profile film applicator machine.
An Aluminum Profile Film Sticking Machine is a specialized piece of equipment used to efficiently apply a protective film onto the surface of aluminum profiles.
The machine applies to stainless steel, plastic steel and aluminum alloy profiles for the surface protective film sticking, with fast speed, film smooth and simple operation features.
The profile surface can get better protection after the machine filming.
Function:

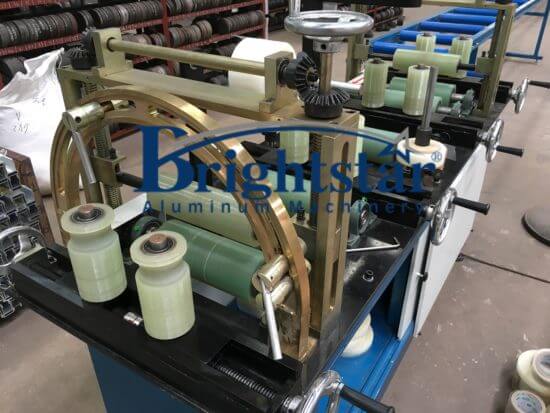

Film Application: The machine feeds a roll of protective film (typically made of PVC, PE, or PET) and uniformly applies it to all four sides of the aluminum profile as it passes through the machine.
Smoothing and Adhesion: The film is pressed tightly against the profile surface using rollers or brushes, ensuring smooth application and strong adhesion.
Trimming and Ejection: Excess film is trimmed at the ends of the profile, and the finished product is ejected for further handling or storage.
Key Features:
Adjustable film tension and pressure: Allows for optimal application based on film thickness and profile size.
Conveyor system: Ensures smooth and continuous feeding of profiles through the machine.
Multiple brush or roller configurations: Different configurations cater to various film types and desired finishes.
Automatic film cutting and trimming: Minimizes operator involvement and prevents film wastage.
Control panel: Enables user-friendly adjustments and process monitoring.
Advantages:
Protection: The film shields the profiles from scratches, dust, moisture, and corrosion during storage, transportation, and installation.
Enhanced aesthetics: Provides a clean and professional look to the profiles, improving their visual appeal.
Space optimization: Packed profiles stack more efficiently with film, maximizing storage and transportation space.
Reduced handling damage: By preventing direct contact with surfaces, the film minimizes the risk of scratches and damage during handling.
Branding and customization: Some films can be printed with logos or other designs for branding and marketing purposes.
Easy removal: The film can be easily removed when the profiles are ready for use, without leaving residue.
Applications:
Architectural and construction: Protecting window frames, door frames, and building cladding profiles.
Furniture and interior design: Safeguarding furniture components, shelves, and decorative elements.
Automotive and transportation: Wrapping metal trim pieces and other exposed components.
Electronics and appliance manufacturing: Protecting aluminum casings and components.
Overall, Aluminum Profile Film Sticking Machines offer a valuable solution for enhancing the protection, aesthetics, and functionality of aluminum profiles in various industries.
Their efficiency, versatility, and ability to add both protective and visual benefits make them a worthwhile investment for manufacturers, distributors, and anyone looking to optimize the handling and presentation of their aluminum profile products.
Technical data of Aluminum profile film sticking machine
1 Voltage: Single phase 220V AC 50HZ
2 Motor power: 1.5Kw
3 Filming feeding speed: 0-120m/min
4 Max profile size: W 300mm* H 200mm
5 Roller size: φ100X300mm
6 Overall dimension: 1880X780X1550mm

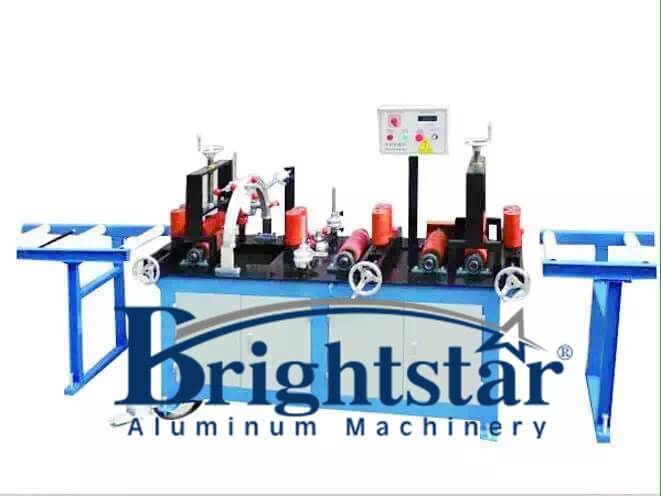

Equipment includes a main machine, one set of roller with the machine, and 2 sets of 4 meters roller conveyors.
The necessity of an Aluminum Profile Film Sticking Machine in aluminum profile packaging depends on several factors, including:
Specific needs and priorities:
Protection level: If your primary concern is protecting profiles from scratches, dust, and minor damage during storage and transportation, then film sticking can be highly beneficial.
However, for heavy-duty protection against extreme conditions or chemicals, additional packaging like crates or specialized coverings might be necessary.
Desired aesthetics: Film adds a clean and professional look to profiles, enhancing their visual appeal.
If presentation is crucial, film sticking becomes more relevant.
Cost and efficiency: Compared to manual film application, the machine offers automation, higher efficiency, and potentially lower labor costs.
However, the initial investment in the machine needs to be weighed against the volume of profiles and the savings achieved.
Sustainability considerations: Film usage generates plastic waste.
If sustainability is a key concern, alternative packaging materials or minimizing film usage through precise application should be explored.
Overall, while not universally necessary, Aluminum Profile Film Sticking Machines offer several advantages when packaging aluminum profiles:
Enhanced protection: Film shields profiles from scratches, dust, moisture, and corrosion.
Improved aesthetics: Provides a clean and professional look, boosting customer appeal.
Space optimization: Film-wrapped profiles stack more efficiently, optimizing storage and transportation.
Efficiency and cost savings: Automated machines streamline the process and potentially reduce labor costs, although the initial investment must be considered.
Branding and customization: Some films allow for logo or design printing for branding purposes.
The decision ultimately depends on a careful evaluation of your specific needs, existing practices, and the benefits versus cost considerations.
Weighing these factors will help you determine if an Aluminum Profile Film Sticking Machine is the right investment for your aluminum profile packaging requirements.
