How to Achieve Energy Saving and Consumption Reduction in Aluminum Profile Anodizing Production Lines?
How to Achieve Energy Saving and Consumption Reduction in Aluminum Profile Anodizing Production Lines?

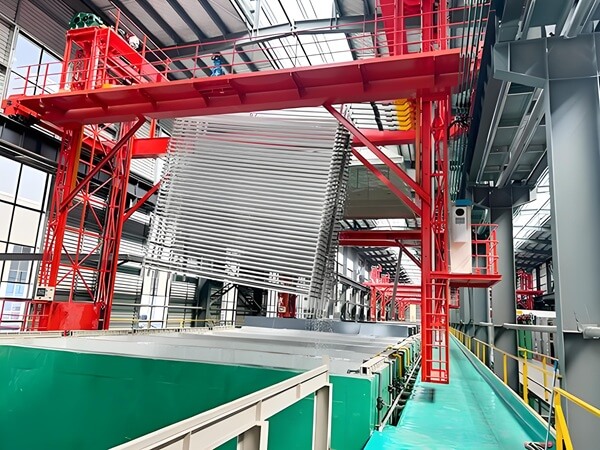

Energy Saving Practices for Aluminum Profile Anodizing Production Lines
Energy costs have emerged as a critical determinant of profitability for aluminum profile manufacturers.
As global prices for electricity, natural gas, water, and environmental compliance continue to climb, the pressure to reduce production and operating costs has become a central concern for investors, plant management, and production engineers alike.
For modern aluminum profile anodizing production lines, energy expenditure typically represents a substantial share of total manufacturing costs—often ranking among the top three operating expenses.
This makes energy efficiency not merely an environmental consideration, but a core financial imperative.
The implications are clear: energy-saving design must be embedded into the project from the earliest planning stages, not treated as an afterthought once production is underway.
Retrofitting a line for efficiency after installation is costly, disruptive, and often less effective than designing for optimal energy performance from the start.
The Strategic Takeaway:
Companies that prioritize energy-efficient design during project planning will achieve lower operating costs, higher margins, and a more sustainable competitive position over the equipment’s 15+ year lifespan.
1. Identify the Primary Energy Consumption Areas First
Before implementing any energy-saving measures, it is essential to conduct a thorough energy audit to determine which stages of the production process consume the most power.
Without this baseline understanding, efficiency efforts risk being misdirected—investing in minor savings while overlooking major opportunities.
In a typical automated anodizing production line, electricity consumption is concentrated in the following areas:
| Energy Consumer | Typical Share of Total Power |
| Oxidation Rectifier | 40–50% |
| Cooling System | 15–20% |
| Automatic Crane | 5–10% |
| Circulating Pump System | 5–10% |
| Exhaust Gas Treatment | 5–8% |
| Lighting & Auxiliary Equipment | 3–5% |
The Critical Insight:
Oxidation rectifiers and cooling systems together typically account for 60% to 65% or more of total electricity consumption.
This concentration means that energy-saving efforts should be strategically focused on these two areas first—where even modest efficiency improvements yield substantial returns.
The Takeaway:
You cannot manage what you do not measure.
Start with a clear picture of where energy is consumed, then prioritize your investments accordingly.
For most anodizing lines, the rectifier and cooling system are the low-hanging fruit with the highest ROI.
2. Adopt High-Frequency Rectifier Technology
The rectifier is the core power equipment in the anodizing process—directly responsible for converting AC power into the controlled DC current required for oxide film formation.
Its performance characteristics have a profound impact on both energy consumption and product quality.
The Limitations of Traditional Thyristor Rectifiers:
Conventional thyristor-based rectifiers operate at low switching frequencies, resulting in:
^Relatively low power conversion efficiency
^Significant heat generation and energy loss
^Higher harmonic distortion in the power supply
^ Slower dynamic response to load changes
The Advantages of Modern High-Frequency Rectifiers:
| Advantage | Technical Benefit |
| Higher Power Conversion Efficiency | Reduced energy waste during AC-DC conversion |
| More Stable Output Current | Consistent current density for uniform oxide growth |
| Faster Response Speed | Rapid adjustment to process parameter changes |
| Lower Harmonic Interference | Cleaner power quality, less stress on electrical infrastructure |
| Less Heat Loss | Reduced cooling requirements and lower ambient temperatures |
The Measurable Impact:
In numerous real-world projects, switching to high-frequency rectifiers has been shown to:
Reduce oxidation power consumption by approximately 10% – a direct operating cost saving
Improve oxide film thickness uniformity – enhancing product consistency
Increase product quality stability – reducing rejects and rework
The Bottom Line:
High-frequency rectifier technology is not merely an equipment upgrade—it is a strategic investment in energy efficiency, process control, and product quality.
The 10% reduction in power consumption alone typically delivers payback within a few years, while the quality improvements provide ongoing competitive advantage.
3. Optimizing the Cooling System Design
The cooling system represents another major energy consumption source in anodizing production.
During the oxidation process, a substantial portion of the electrical energy delivered by the rectifier is converted into heat, which is absorbed by the sulfuric acid electrolyte.
If this heat is not dissipated efficiently, bath temperature will rise beyond the optimal range, directly compromising oxide film quality, thickness uniformity, and corrosion resistance.
Traditional Cooling Methods vs. Direct Cooling Technology:
Conventional cooling systems rely on indirect heat exchange—typically using chilled water circuits and plate heat exchangers to remove heat from the electrolyte.
While effective, these systems suffer from inherent inefficiencies:
| Traditional Heat Exchange Cooling | Direct Cooling Technology |
| Lower cooling efficiency | Higher cooling efficiency |
| Higher energy consumption | Lower energy consumption |
| Slower response to temperature changes | Faster response speed |
| More maintenance requirements | Fewer maintenance requirements |
| Secondary heat transfer losses | Direct heat removal |
The Advantages of Direct Cooling Technology:
Modern anodizing equipment manufacturers are increasingly adopting direct cooling technology, which eliminates the intermediate heat exchange step and delivers refrigerant directly to the electrolyte cooling system.
This approach offers:
Higher cooling efficiency – more heat removed per unit of energy consumed
Lower energy consumption – reduced refrigeration load and auxiliary power
Faster response speed – rapid temperature correction during peak heat generation
Fewer maintenance requirements – simpler system architecture with fewer components
The Measurable Impact:
In practical applications, direct cooling technology typically achieves:
5%–8% savings in overall power consumption
Improved temperature stability – tighter control of bath conditions
Enhanced oxide film quality – consistent thickness and structure
The Bottom Line:
Cooling system optimization is not a minor adjustment—it is a strategic energy-saving opportunity.
Direct cooling technology delivers measurable reductions in power consumption while simultaneously improving process stability and reducing maintenance demands.
4. Utilizing Variable Frequency Drive (VFD) Control Systems
A significant portion of the equipment in an anodizing workshop does not require continuous full-load operation.
Yet in many conventional plants, motors run at fixed full speed regardless of actual production demand—wasting energy during low-load periods and incurring unnecessary wear.
Common Equipment Suitable for VFD Control:
| Equipment Type | Function |
| Exhaust Fans | Fume extraction and ventilation |
| Circulating Pumps | Electrolyte and cooling water circulation |
| Conveying Equipment | Material transport and handling |
| Blowers | Air supply for agitation, drying, or treatment |
How VFD Technology Works:
A Variable Frequency Drive (VFD) adjusts the motor’s rotational speed by varying the frequency and voltage of the electrical supply.
Instead of running at a fixed full speed, the motor responds dynamically to actual production requirements—slowing down or speeding up as needed.
Key Advantages:
| Advantage | Operational Benefit |
| Reduced Power Consumption | Energy use matches actual load, eliminating waste during low-demand periods |
| Reduced Mechanical Wear | Lower speeds mean less stress on bearings, belts, and couplings |
| Extended Equipment Lifespan | Gentler operation translates to longer service life |
| Reduced Maintenance Costs | Fewer failures and longer service intervals |
The Measurable Impact:
Under typical operating conditions, VFD-controlled motors can achieve:
^20%–30% reduction in motor energy consumption
^Significant extension of equipment service life
^ Lower overall maintenance expenditure
The Bottom Line:
VFD control is a proven, high-ROI energy-saving technology.
It is particularly effective for equipment that operates intermittently or at varying loads—common in anodizing production environments.
The 20–30% motor energy savings alone typically deliver payback within a short period.
5. Reducing Water and Chemical Consumption
Energy conservation in anodizing is not limited to electricity alone.
Water treatment and chemical consumption represent equally significant components of overall operating costs—and equally important opportunities for optimization.
In a typical anodizing line, substantial volumes of fresh water are consumed for rinsing between process stages, while chemicals are lost through drag-out, evaporation, and inefficient dosing.
These losses translate directly into higher operating expenses, increased wastewater treatment loads, and greater environmental compliance burdens.
Modern Technologies for Water and Chemical Reduction:
Leading aluminum profile coloring lines now incorporate a suite of technologies designed to minimize both water and chemical consumption:
| Technology | Function |
| Multi-Stage Countercurrent Rinsing | Fresh water enters at the final rinse stage and flows backward through preceding stages, maximizing rinsing efficiency with minimal water use |
| Spray Rinsing Systems | Targeted spray nozzles deliver precise water volumes to profile surfaces, reducing overall consumption compared to immersion rinsing |
| Recycling Systems | Recover and reuse rinse water and process chemicals, reducing fresh water intake and discharge volumes |
| Automatic Dosing Systems | Precisely maintain chemical concentrations, eliminating over-dosing and reducing chemical waste |
The Measurable Benefits:
These technologies effectively reduce:
Fresh water consumption – lower utility costs and reduced environmental footprint
Wastewater discharge – reduced treatment loads and compliance costs
Chemical carryover losses – less drag-out means less waste and lower chemical purchases
Wastewater treatment costs – lower contaminant loads reduce treatment expenses
The Quality Connection:
Importantly, these efficiency measures do not compromise process quality. In fact, they enhance it by:
Maintaining stable chemical concentrations
Ensuring consistent rinsing effectiveness
Reducing contamination between process stages
The Bottom Line:
Water and chemical conservation is not just an environmental initiative—it is a direct contributor to profitability.
Modern rinsing, recycling, and dosing technologies deliver measurable reductions in operating costs while maintaining or improving product quality.
6. Improving Automation and Equipment Interlocking Control
A significant portion of energy waste in anodizing plants stems not from inefficient equipment, but from equipment operating when it doesn’t need to.
Motors running during idle periods, cooling systems maintaining temperature when no production is occurring, exhaust fans at full speed regardless of actual fume generation—these inefficiencies quietly accumulate into substantial annual costs.
The Solution: Intelligent Interlocking Control Systems
Modern automated anodizing production lines employ sophisticated interlocking control logic that synchronizes equipment operation with actual production activity.
Instead of running continuously at fixed settings, each subsystem responds dynamically to real-time conditions.
Examples of Intelligent Interlocking in Practice:
| Equipment | Interlocking Logic | Energy Benefit |
| Rectifier | Automatically starts only after workpieces enter the anodizing tank; stops when tank is empty | Eliminates idle power consumption |
| Water Pumps | Operate only when production is active; adjust flow based on demand | Reduces pumping energy during idle periods |
| Exhaust System | Automatically adjusts airflow based on actual fume generation and production status | Matches ventilation to demand |
| Cooling System | Modulates cooling load based on real-time bath temperature | Avoids unnecessary refrigeration |
The Operational Principle:
The PLC central control system continuously monitors production status—crane position, tank occupancy, process stage—and communicates with each subsystem to ensure that equipment operates only when needed, and only at the level required.
The Measurable Benefits:
^Elimination of idle operation – equipment stops when production stops
^Demand-matched energy consumption – output adjusts to actual load
^Improved overall energy efficiency – every subsystem contributes to savings
^Extended equipment lifespan – reduced running hours mean less wear
The Bottom Line:
Intelligent interlocking is not merely a convenience feature—it is a systematic approach to eliminating energy waste.
By synchronizing equipment operation with production activity, modern anodizing lines achieve significant energy savings without compromising process quality or throughput.
Conclusion: Energy Efficiency as a Systematic Strategy
Energy saving and consumption reduction in aluminum profile anodizing production lines cannot be achieved through any single measure.
It requires a systematic engineering approach that integrates decisions across multiple dimensions:
| Dimension | Key Considerations |
| Equipment Selection | High-efficiency rectifiers, optimized cooling systems |
| Process Design | Rinsing efficiency, chemical management, bath configuration |
| Automation Control | Intelligent interlocking, demand-matched operation |
| Cooling Systems | Direct cooling technology, thermal stability |
| Production Management | Data-driven monitoring, continuous improvement |
The Integrated Solution:
By adopting a combination of proven technologies—including high-frequency rectifiers, direct cooling, variable frequency drives, intelligent automation, and optimized water treatment—manufacturers can achieve significant reductions in operating costs while maintaining or even enhancing anodizing and coloring quality.
The Strategic Imperative for Investors:
For those planning to build new automated anodizing plants, energy-saving capability should be a primary evaluation criterion when selecting equipment manufacturers.
The reasoning is straightforward:
Long-term operating cost savings consistently outweigh upfront equipment price differences.
A supplier offering marginally lower capital costs but higher energy consumption will ultimately deliver a higher total cost of ownership over the 15+ year lifespan of the line.
Conversely, a supplier with superior energy-efficient design may command a higher initial price—but will deliver substantially greater returns through reduced electricity, water, chemical, and maintenance expenses.
The Bottom Line:
Energy efficiency is not an expense—it is an investment in long-term competitiveness.
The manufacturers who prioritize it today will be the market leaders of tomorrow.
